| Product | Price | Discount | Why it is a great deal | Buy |
|---|---|---|---|---|
 SanDisk Professional PRO-G40 4TB SSD | $839.99$1,079.99 | 22% OFF | Pro field driveIP68 and up to 3,000MB/s over Thunderbolt 3. | Check on Amazon |
 Samsung T7 Portable SSD 2TB | $396.51$479.99 | 17% OFF | Everyday driveUp to 1,050MB/s in an aluminum body. | Check on Amazon |
 Samsung T9 Portable SSD 2TB | $437.01$489.99 | 11% OFF | 20Gbps driveRated at 2,000MB/s, with the mini's 10Gb/s front ports as the limit. | Check on Amazon |
The M6 Mac mini’s Back Ports Run Drives at 40Gb/s and Its Front Ports at 10Gb/s
The port you pick sets the ceiling for every drive in this list:
- Back: three Thunderbolt 4 ports at up to 40Gb/s, which suit USB4 and Thunderbolt drives rated at 2,800MB/s and above
- Front: two USB-C ports with USB 3 speeds up to 10Gb/s, which match drives rated near 1,000MB/s
- Thunderbolt 5 drives: they connect to the Thunderbolt 4 ports and run at Thunderbolt 4 speed
A faster drive on a slower port still works. It runs at the port’s limit, so a 4,000MB/s drive plugged into a front port will not reach its rating.

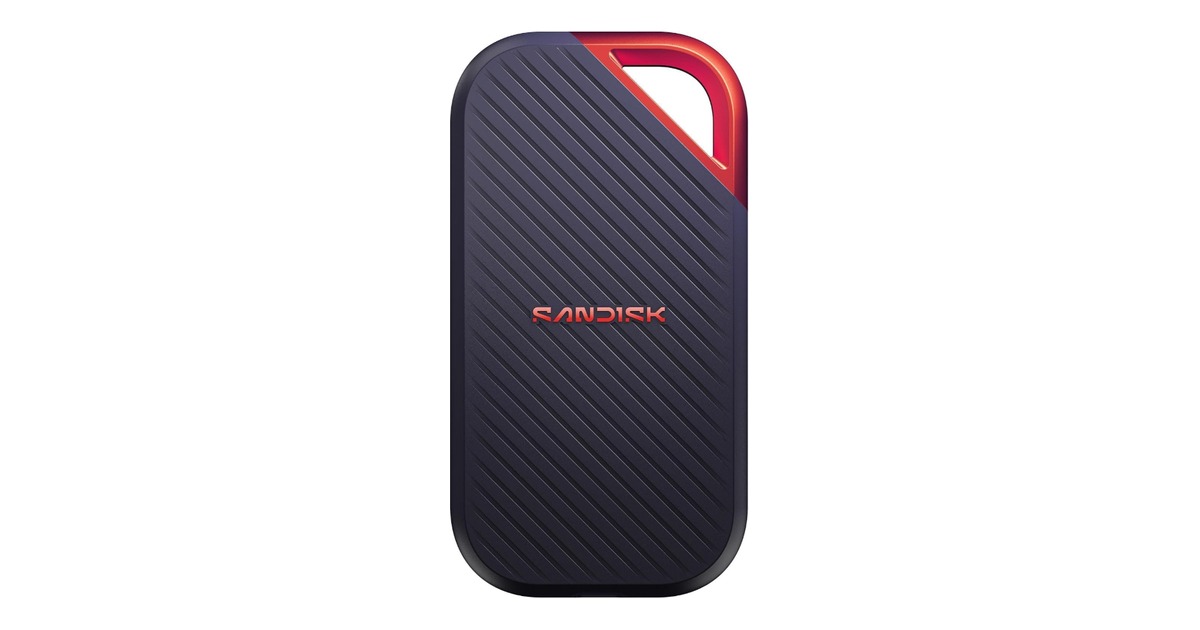

The SanDisk Extreme PRO Portable SSD Reads at Up to 4,000MB/s Over USB4
The SanDisk Extreme PRO connects over USB-C and USB4 and is rated for up to 4,000MB/s reads. SanDisk lists average sustained writes of 3,100MB/s on the 2TB and 4TB models. It carries an IP65 rating, up to 3 meters of drop protection and 256-bit AES password protection. Pick it if you edit video from an external drive and want a drive that stays quick through long copies.

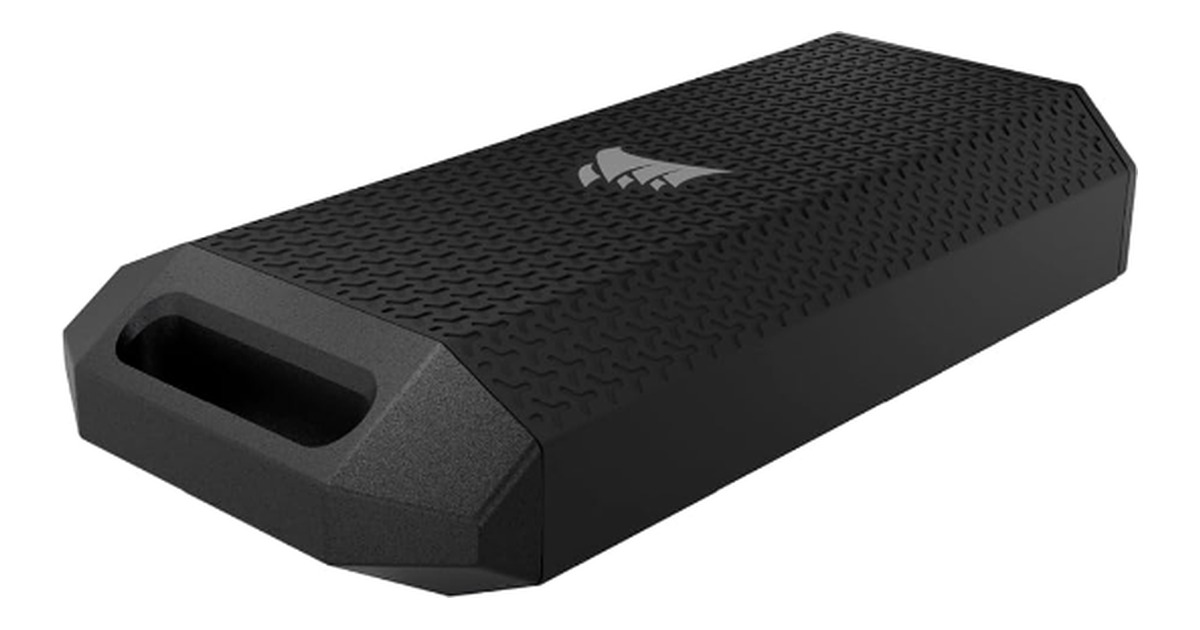

The Corsair EX400U Survivor Pairs 4,000MB/s USB4 Speed With an IP55 Rugged Shell
The EX400U Survivor reads at up to 4,000MB/s and writes at up to 3,600MB/s over USB4 at 40Gbps. A heavy-duty housing carries an IP55 rating, and a single USB-C cable handles power and data. Corsair says full speed needs a USB4 or Thunderbolt 4 port, which the back of the mini provides. Pick it if the drive will move between a desk and a camera bag.

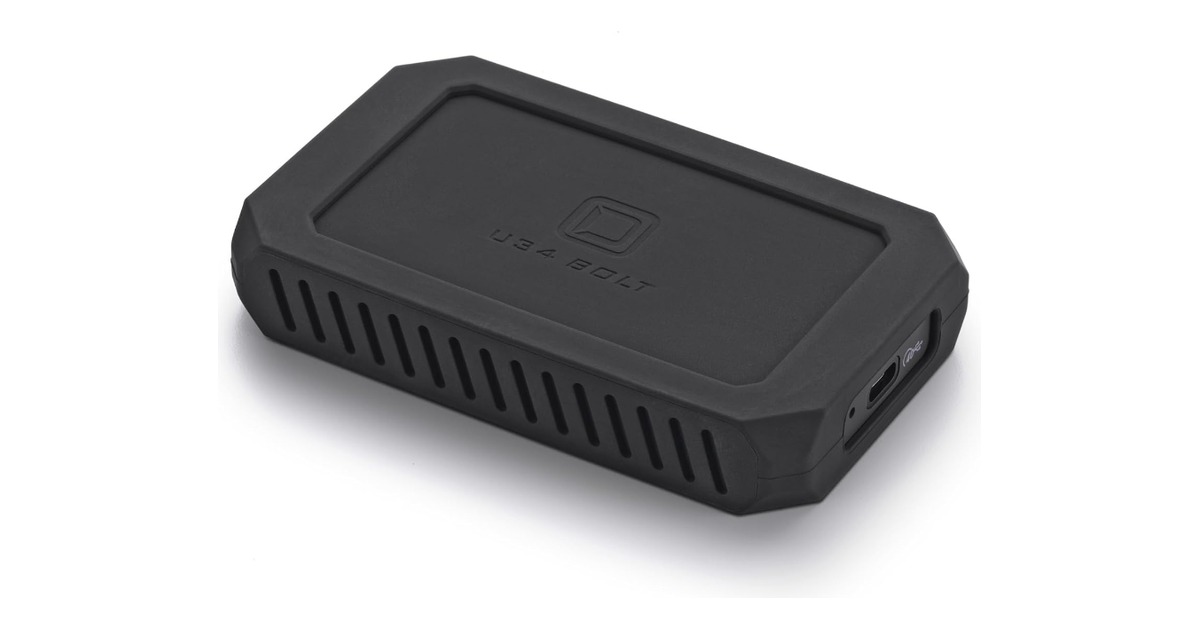

The Oyen Digital U34 Bolt Runs at Up to 2,800MB/s in a MIL-STD 810 Rated Body
The U34 Bolt is a USB4 40Gbps NVMe drive that works with Thunderbolt 3, 4 and 5 hosts and ships formatted for macOS. It has a cooling aluminum core, a rubberized shell with a MIL-STD 810 protection rating and a 3-year warranty. Pick it if you want a rugged Thunderbolt-class drive from a storage specialist.

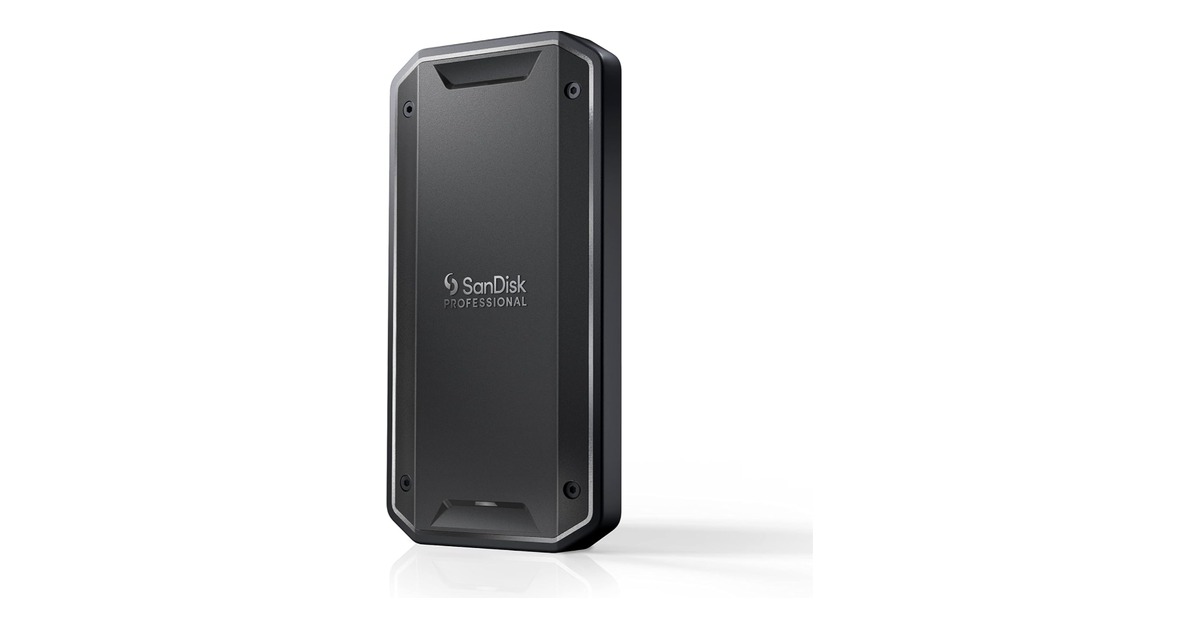

The SanDisk Professional PRO-G40 Is IP68 Rated and Reads at Up to 3,000MB/s
The PRO-G40 reads at up to 3,000MB/s and writes at up to 2,500MB/s over Thunderbolt 3 at 40Gbps, and it also runs over USB-C at 10Gbps. It has IP68 dust and water resistance, 4,000 pounds of crush resistance and 3 meters of drop resistance. It ships formatted for macOS with APFS. Pick it if the drive goes outdoors or into a work bag.

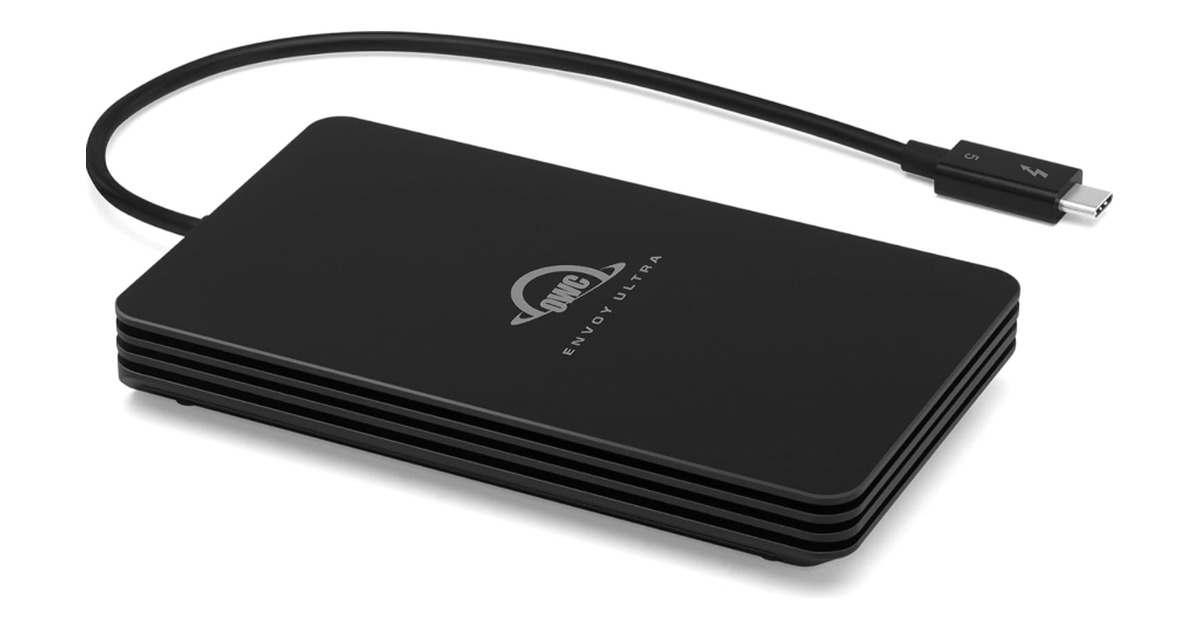

The OWC Envoy Ultra Is a Thunderbolt 5 Drive That Runs at Thunderbolt 4 Speed on the M6 Mac mini
OWC rates the Envoy Ultra above 6,000MB/s on a Thunderbolt 5 port, which the M6 Mac mini does not have. On the mini’s Thunderbolt 4 ports it runs at Thunderbolt 4 speed. It has an integrated Thunderbolt 5 cable, IP67 weatherproofing, a fanless aluminum body and a 5-year warranty. Pick it if you plan to keep the drive for a future Thunderbolt 5 Mac.

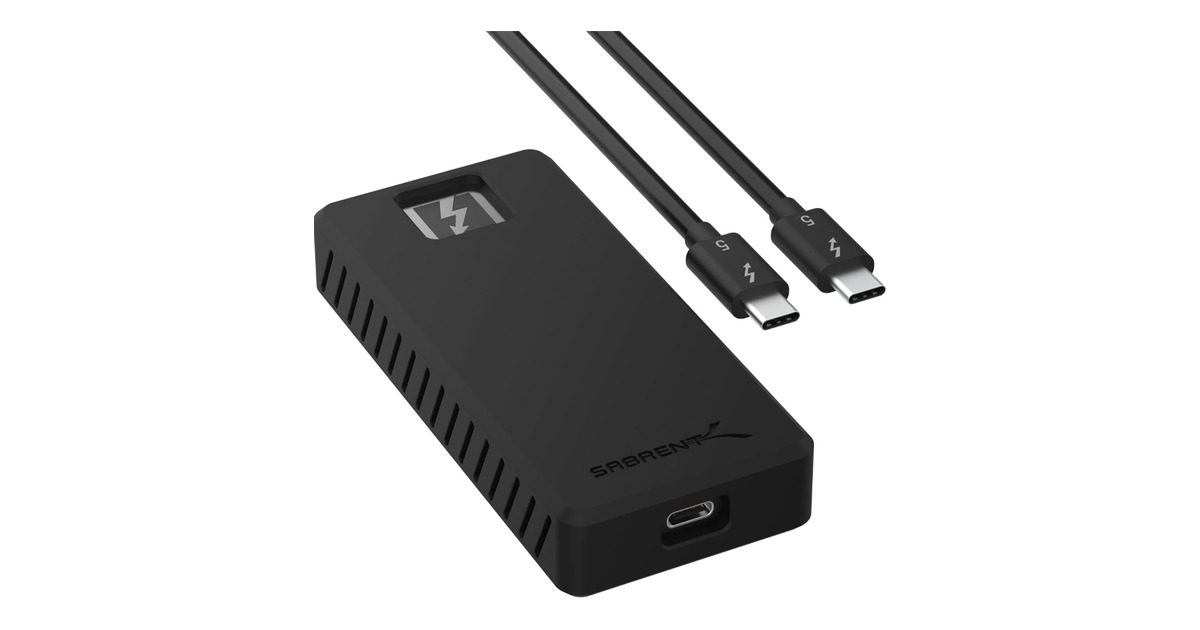

The Sabrent Rocket XTRM 5 Ships With a Thunderbolt 5 Cable and a Silicone Sleeve
The Rocket XTRM 5 has an 80Gbps Thunderbolt 5 connection with up to 64Gbps transfer speeds and is backward compatible with Thunderbolt 4, Thunderbolt 3 and USB4. The aluminum body takes a silicone sleeve for drop protection, and the drive is bus-powered. Pick it if you want Thunderbolt 5 headroom and a cable in the box.

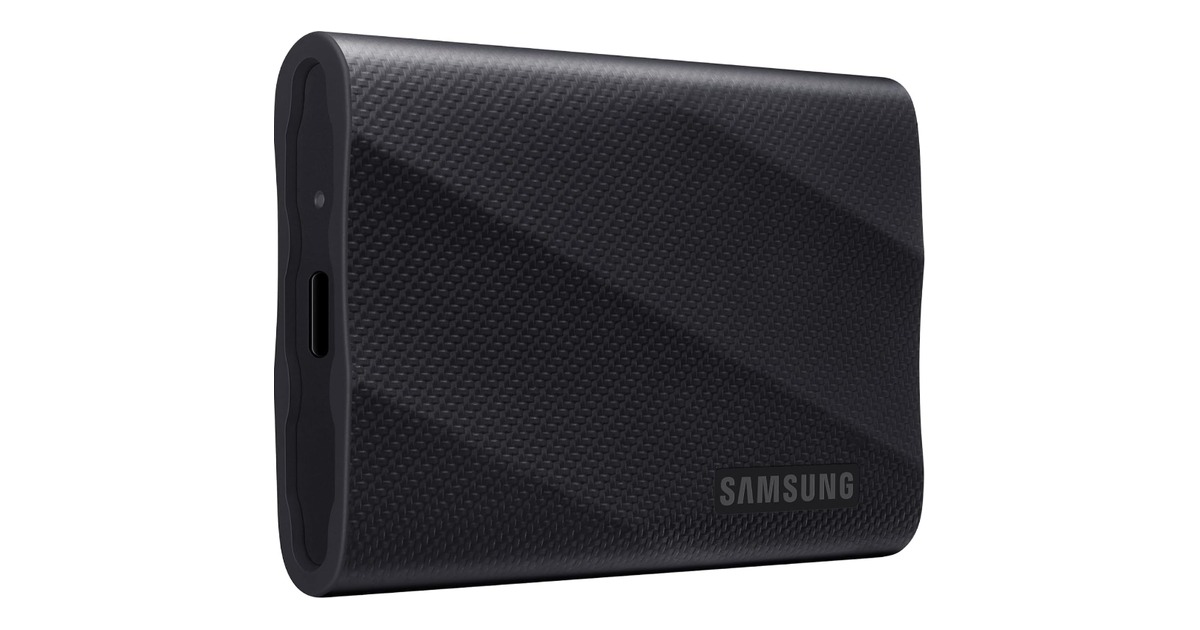

The Samsung T9 Is Rated at 2,000MB/s but the M6 Mac mini’s Front Ports Stop at 10Gb/s
The Samsung T9 uses USB 3.2 Gen 2×2 for sustained speeds of up to 2,000MB/s and has a Dynamic Thermal Guard to control heat. That rating needs a 20Gbps connection, and the mini’s front ports are rated at 10Gb/s, so expect a lower figure. Pick it if you also use the drive with a PC or console that supports 20Gbps.

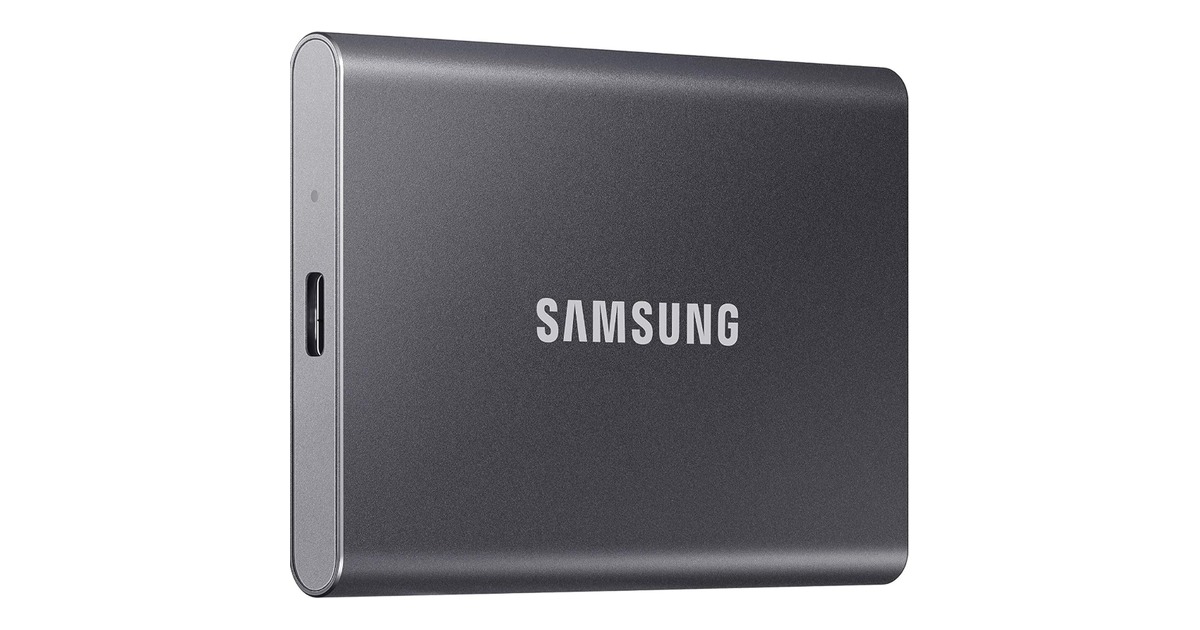

The Samsung T7 Reads at Up to 1,050MB/s in an Aluminum Body With Capacities to 4TB
The Samsung T7 uses PCIe NVMe for read and write speeds of up to 1,050MB/s and 1,000MB/s over USB 3.2 Gen 2. A solid aluminum unibody gives it fall protection up to 6 feet. It handles backups and a photo library at capacities up to 4TB. Pick it if you want a drive that matches the mini’s front ports.

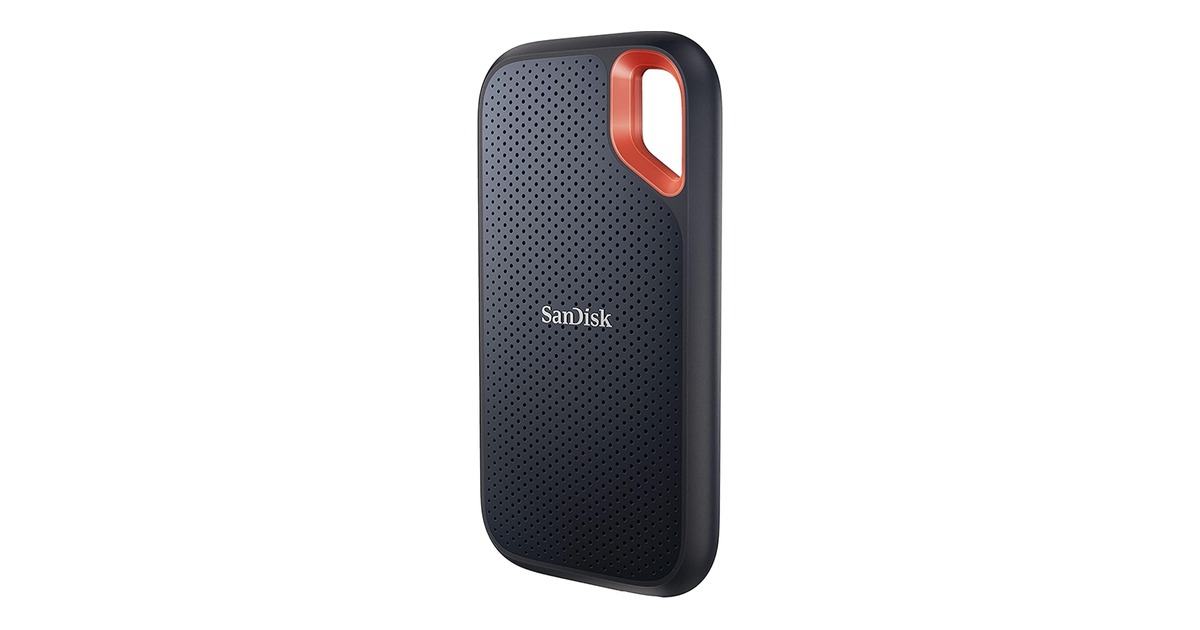

The SanDisk Extreme Portable SSD Adds IP65 Protection and a Carabiner Loop at 1,050MB/s
The SanDisk Extreme reads at up to 1,050MB/s and writes at up to 1,000MB/s over USB 3.2 Gen 2. It carries an IP65 rating and 3 meters of drop protection, with a carabiner loop and 256-bit AES hardware encryption. The Memory Zone app helps manage files. Pick it if the drive travels with a laptop and the mini.
My Pick Is the SanDisk Extreme PRO for Speed and the Samsung T7 for Everyday Backups
If I were buying one drive for editing video on the M6 Mac mini, I would get the SanDisk Extreme PRO and plug it into one of the Thunderbolt 4 ports. The Corsair EX400U Survivor is the alternative if the drive will be handled roughly. For backups and a photo library, the Samsung T7 matches what the front ports can deliver. I would skip the Thunderbolt 5 drives unless you plan to move to a Thunderbolt 5 Mac, since the mini runs them at Thunderbolt 4 speed.
Questions About External SSDs for the M6 Mac mini
Can I upgrade the M6 Mac mini’s internal storage later?
No. The storage is soldered to the board, which is why an external SSD is the way to add storage after purchase.
Which port should an external SSD use?
Use a Thunderbolt 4 port on the back for USB4 and Thunderbolt drives at up to 40Gb/s. A front USB-C port is enough for drives rated near 1,000MB/s. If both are taken, the hubs for the M6 Mac mini add more ports.
Do Thunderbolt 5 drives work with the M6 Mac mini?
Yes. They are backward compatible and connect to the Thunderbolt 4 ports, but they run at Thunderbolt 4 speed.
Which external SSDs for the M6 Mac mini are rugged?
The SanDisk Professional PRO-G40 is rated IP68, the OWC Envoy Ultra IP67, the SanDisk Extreme PRO and SanDisk Extreme IP65, and the Corsair EX400U Survivor IP55. The Oyen Digital U34 Bolt carries a MIL-STD 810 rating.
How much storage does the M6 Mac mini start with?
The base model has 256GB and can be configured with 512GB, 1TB or 2TB.
