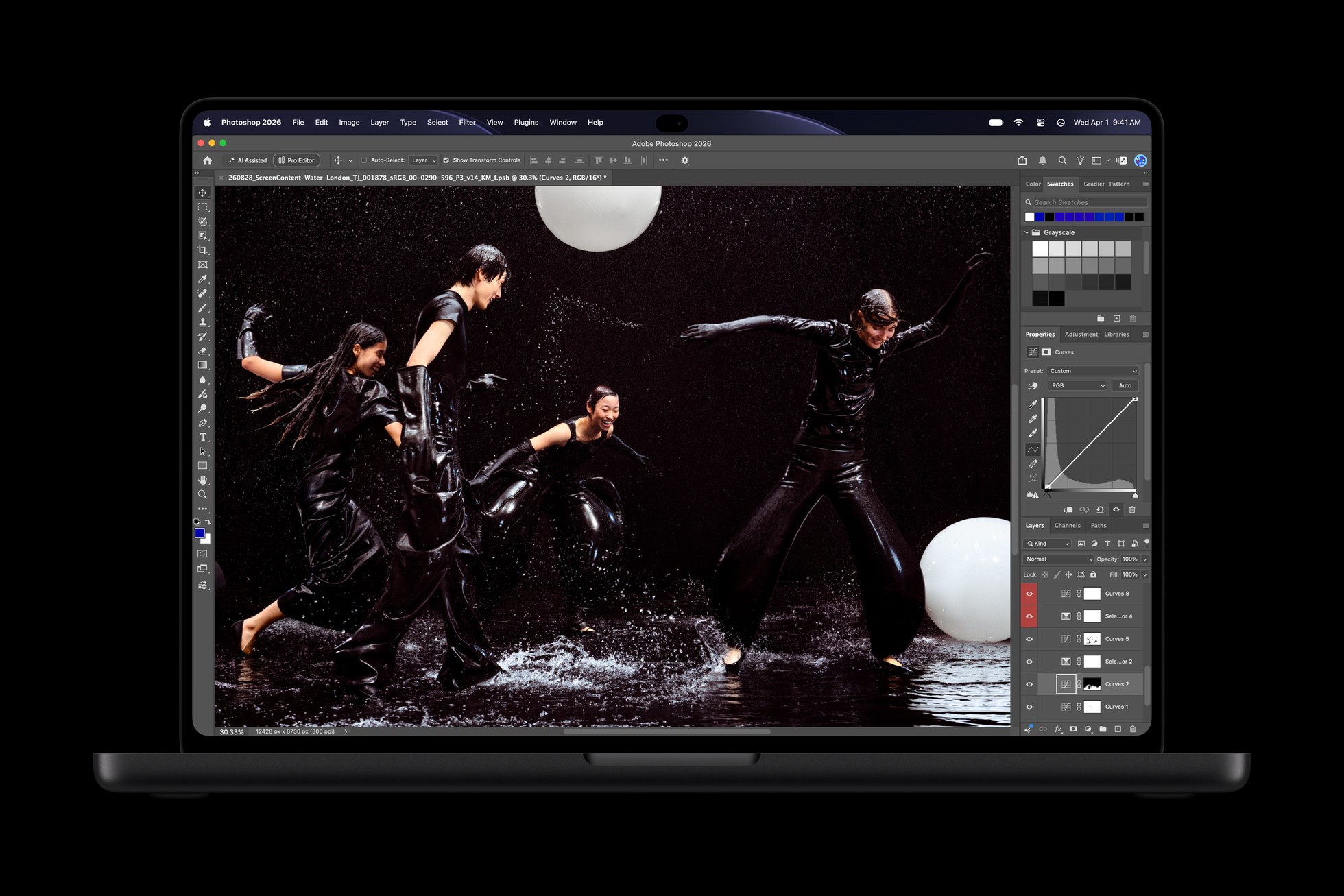

The tandem OLED MacBook Pro debuted on October 28 with the PROLED XDR Display, a 14.2-inch or 16.3-inch panel that stacks two emitter layers and is offered only with the M5 Pro or M5 Max chip. Pre-orders opened that day in 30 countries and regions including the United States, with prices from $2,899, and the first units ship on November 6.
Apple’s PROLED XDR technical paper credits the design with up to 50% higher maximum SDR brightness than recent MacBook Pro displays, on a panel that runs at 254 pixels per inch with 3024 by 1986 pixels on the 14.2-inch size and 3472 by 2266 on the 16.3-inch size. The same panel carries a touch sensor, which makes it the first Mac display that responds to a finger.
The tandem OLED MacBook Pro splits each pixel’s light across two emitter layers
Two stacked electroluminescent layers both contribute to each pixel’s light, so each layer runs at a lower current than a single layer would need for the same output. Single-layer OLED panels have historically struggled to sustain high brightness for long periods.
The split is credited with higher peak brightness, better power efficiency and a longer panel lifespan, though no figure is published for efficiency or lifespan. The previous Liquid Retina XDR display also lists 1000 nits sustained, so the full-screen figure is unchanged.
The 1000 and 2000 nits figures both depend on conditions
Sustained brightness holds at 1000 nits for full-screen HDR and SDR up to 25°C (77°F). Above that temperature it may drop, and a Reference Status Indicator in the menu bar flags when the display cannot thermally sustain the brightness a mode requires.
EDR headroom reaches up to 16x the SDR level, which is four stops of highlight room, so a 100 nits SDR setting allows 1600 nits HDR peaks and the full 2000 nits needs SDR at 125 nits. SDR content itself reaches 2000 nits only in very bright ambient light, and minimum brightness is 1 nit.
The display engine in the M5 Pro and M5 Max corrects every pixel in real time
The engine compensates each pixel for content, usage, temperature and ambient conditions. Uniformity compensation keeps luminance and color even from 1 to 1000 nits, and dynamic compensation manages each pixel’s drive signal to smooth content transitions and improve low-light performance. Pixel calibration tunes each pixel for accuracy out of the box, while burn-in mitigation tracks each pixel’s usage and compensates pixel by pixel.
Factory calibration covers color, gamma up to the 2000 nits peak and uniformity, and Pro Display Calibrator adds Visual Fine-Tune, Fine-Tune Calibration and Full Calibration with a spectroradiometer. No display lifespan or burn-in figure is published in the technical paper or on the specs pages.
The panel pairs 10,000,000:1 contrast with 1.00% reflectance
Contrast is 10,000,000:1 with per-pixel black levels and essentially no blooming or halo. Color covers P3 plus Adobe RGB in a single preset, more than 1 billion colors and 81% of BT.2020, the viewing angle is 89° in each direction, and pixels switch in microseconds where LCD takes milliseconds.
Reflectance is 1.00% typical on the standard cover glass with a custom antireflective coating, and the nano-texture option etches the glass for a matte finish with minimal effect on sharpness, color and contrast. ProMotion runs from 10Hz to 120Hz, drops to 10Hz when idle, and adds fixed rates such as 47.95Hz, 48Hz, 50Hz, 59.94Hz and 60Hz for video.
Under the glass sits a full oxide transistor layer, which Apple calls an industry first, with a stiffener behind the back glass that keeps the panel flat. Sixteen built-in reference modes cover video, cinema, print, photography, web and medical work, including an Apple XDR Display mode with SDR up to 2000 nits, and the DICOM-350 and DICOM-600 medical modes are not for diagnostic use.
Touch is built into the display panel for the first time on Mac
The touch sensor sits inside the panel instead of on top of it, which Apple says reduces latency, though no latency figure is published. Scrolling, pinching, rotating and drawing work as Multi-Touch gestures, and macOS translates touches into clicks so many existing apps respond right away. Touch works alongside the keyboard and trackpad rather than replacing them, and a redesigned hinge and video stabilization keep the screen and the camera feed steady while you tap.
Pixelmator Pro supports drawing, painting and selecting on the canvas, Logic Pro adds a Multi-Touch polyphonic keyboard and tappable chord and drum pads, and Final Cut Pro supports marking ranges and dropping clips. Developers get updated system gesture APIs and can test iOS and iPadOS apps onscreen in Xcode, while Notion, Canva, Zoom, Blender and Adobe Lightroom are among the third-party apps adding touch later this year.
The Dynamic Island also arrives on the Mac as the home for Spotlight, Live Activities and Siri AI, where a tap can pause a song or accept an AirDrop request. Spotlight shows up there only when Siri AI is available and enabled.
