PROLED XDR vs Liquid Retina XDR comes down to a new tandem OLED panel in the MacBook Pro with PROLED XDR Display that Apple says is brighter, higher in contrast and wider in color than the display it replaces. The numbers show real gains, but three figures from the old spec page have no match yet.
The MacBook Pro with PROLED XDR Display keeps the M5 Pro and M5 Max chips from the March MacBook Pro models, so the display is the main hardware change. The comparison below uses Apple’s current Liquid Retina XDR tech specs against the PROLED XDR figures from the October 28 announcement.
PROLED XDR vs Liquid Retina XDR spec by spec
| Spec | Liquid Retina XDR | PROLED XDR |
|---|---|---|
| Peak HDR brightness | 1600 nits | 2000 nits |
| SDR brightness | Up to 1000 nits | Up to 2000 nits |
| Full-screen sustained brightness | 1000 nits | Not listed |
| Contrast ratio | 1,000,000:1 | 10,000,000:1 |
| Color gamut | P3 | P3 and Adobe RGB |
| Adaptive refresh rate | Up to 120Hz | 10Hz to 120Hz |
| Screen size, 14-inch model | 14.2 inches | 14.2 inches |
| Screen size, 16-inch model | 16.2 inches | 16.3 inches |
| Native resolution | 3024 by 1964 and 3456 by 2234 | Not listed |
| Pixel density | 254 pixels per inch | Not listed |
Apple lists no sustained full-screen brightness, no resolution and no pixel density for PROLED XDR, so the old display’s 1000 nits sustained and 254 pixels per inch have no confirmed successor. The 16-inch screen grows from 16.2 to 16.3 inches because of slimmer display borders, while the 14-inch stays at 14.2 inches. A redesigned thermal architecture also redirects warm air away from the display.
Tandem OLED raises brightness and contrast the most
PROLED XDR stacks two self-illuminating pixel layers, which Apple says delivers deep blacks and bright highlights without blooming or halos. Contrast rises tenfold on paper, from 1,000,000:1 to 10,000,000:1, and peak HDR brightness goes up 25 percent from 1600 to 2000 nits.
The SDR change is larger, from up to 1000 nits to up to 2000 nits. The two figures use different wording, with “outdoor” on the old page and “peak” on the new one, so the real-world gap needs measuring before anyone treats it as a straight doubling. The headline battery figure stays at up to 24 hours, although the tech specs page for the March models lists 22 hours of video streaming for the 14-inch M5 Pro and 20 for the 14-inch M5 Max, so per-model PROLED XDR numbers are still to come.
A new display engine adjusts each pixel at the sub-millisecond level for content, temperature and environment. It also tracks how each pixel is used over time to keep image quality steady, and the announcement does not mention burn-in by name. The 10Hz refresh floor is there for power efficiency on static content.
Adobe RGB and DICOM reference modes are the color upgrades

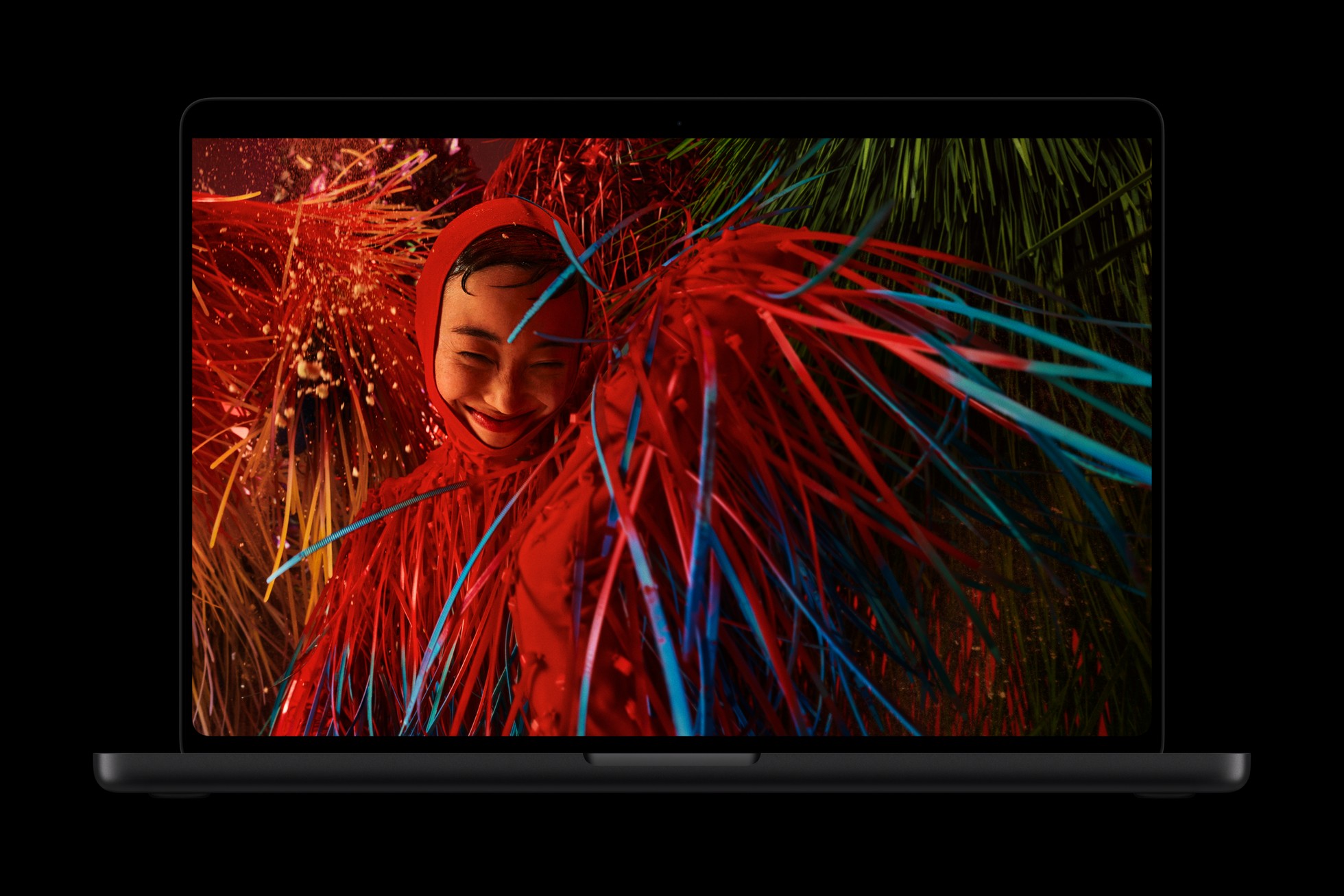

PROLED XDR adds Adobe RGB to P3, with wider green and cyan coverage that Apple says reaches more than 80 percent of Rec. 2020. Both color spaces sit in one default preset, and Apple Color Matching Function 2026 keeps colors consistent when the display is paired with an iPhone 18 Pro or a Studio Display XDR.
Pros also get the Apple Pro Display Calibrator and new DICOM reference modes for nondiagnostic medical image review. The nano-texture option is now etched into the cover glass, and the panel is paired with an antireflective coating.
The old Liquid Retina XDR display already offered reference modes such as Apple XDR Display (P3-1600 nits) and Photography (P3-D65). The announcement describes industry-standard modes for cinematic, photography, print and design work without listing them by name.
PROLED XDR is pitched as a portable reference display for filmmakers, colorists, photographers and designers, which is where the Adobe RGB and Rec. 2020 numbers matter most. Anyone outside those jobs will notice the brightness and contrast first.
